Focus on providing solutions for outdoor digital media and LED industrial applications
6 Years
| Ask Lasest Price | |
| Brand Name : | Sysolution |
| Model Number : | RG30-H |
| Certification : | RoHS and CE-EMC |
| Price : | Negotiation |
| Payment Terms : | T/T,PayPal |
| Supply Ability : | 30 units per week |
| Delivery Time : | 2-3 working days |
RG30-H is an IP column speaker with 4.5 high-precision unit speakers, high-precision sound effect. Support LEDOK cloud platform text to automatic voice function, remote cluster release MP3 audio task timer playback, remote call out. All-aluminum alloy casing, aluminum alloy net cover, anti-freeze, sunscreen, moisture-proof, rust-proof and waterproof.
Wide range of applicable scenes, such as: traffic light intersections, light pole community, supermarket campus, classrooms, coffee shops, parks, exhibition halls and so on.
Applicable scenes are wide, the following are a few common scenes: traffic light intersections, light pole communities, supermarkets, campuses, classrooms, cafes, parks, exhibition halls, etc.
| Type | Parameters | |
| Model | RG30-H | RG30-H-4G |
| Communication method | Network port,WiFi/AP | No network port, WiFi/AP, 4G (default welding Xixun IoT chip, foreign countries need to provide their own reserved SIM card slot) |
| Rated power | 30W (can be used in series by two units) | |
| Sensitivity | 91dB±3DB | |
| Input Voltage | 12V | |
| Input Resisitance | 8Ω | |
| Response frequency | 120-18KHZ | |
| Speaker unit | 4"+0.5"high pitch | |
| Weight | 1.45kg | |
| Size | 150(Length)x 100(width) x390(mm height) | |
Note: factory-welded IoT chip, the use of Sysolution Company,comes with the provision of IoT chip does not require any operator whitelist operation, directly can be used, with self-provided IoT card requires a real name system, you need to add the platform-related domain names,easily affected by many instability factors.
①Power supply port: DC12V power input;
②Network port: insert the network cable to connect to the switch, so that the device can normally access to the server.
Network light status: no light on when no network, slow blinking light when has internet, fast blinking light when receiving broadcasts.
③ Alarm input port (2P black port): when the alarm input port is triggered, the alarm input audio file uploaded under the audio parameter of web interface will be played automatically (under offline status).
Optional accessories: cloud radio desktop microphone RHH1 to achieve remote speaking.

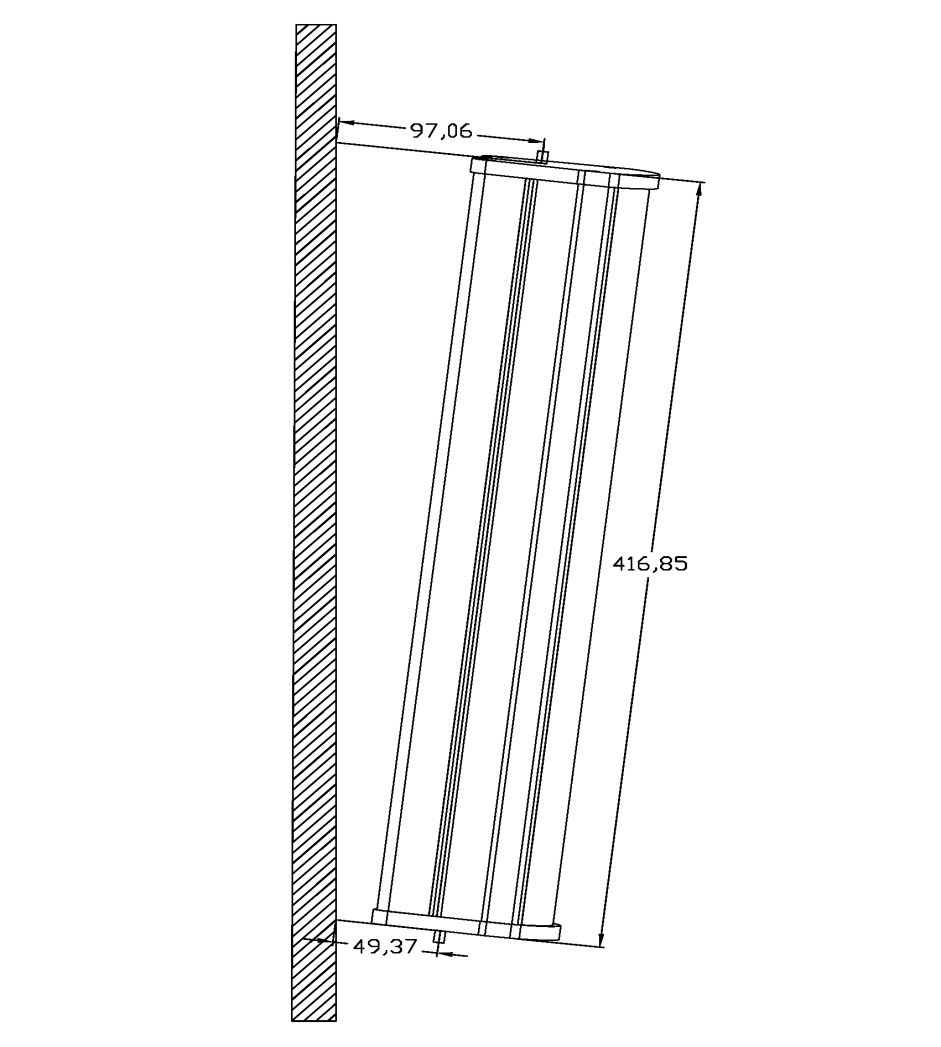

RG30-H Installation Schematic
RG30-H Fixed bracket hole position diagram
|
|
