Sysolution RC200 Series Power Supply DC 5V for LED Vehicle Screen

Sysolution RC200 series power supply

Product Introduction:

Sysolution RC200 is designed for vehicle screens, supplys ultra-low temperature starting. With high-reliability, it passed 100% full load aging test. RC200 series includes RC200D4.2, RC200D4.5 and RC200D5. These products could protect short out, overcurrent, overvoltage, inversed grafting and over-temperature.

Product Images:

Functions and Features:

Output delay protection, extend battery life.
Cryogenic start.
High reliability : 100% full load aging test.
Green LED light- Power supply indication status.
Suitable for taxi-screen application.

Specification parameters:

Power Model		RC200D4.2	RC200D4.5	RC200D5
Project	Function	Parameter
Input Characteristic	Input voltage range	9～36Vdc
	Power frequency range	80～100KHz
	Maxi input current	25A MAX
	Full load efficiency	≥87%	≥88%	≥89%
	Input impulse current (Cold boot)	Less than 100A, cold start
Output Characteristic	Output voltage	4.2V	4.5V	5.0V
	Output voltage error range	±3%	±3%	±3%
		4.07V～4.33V	4.35V～4.65V	4.85V～5.15V
	Output current	0～40A	0～40A	0～40A
	Maxi power	168W	180W	200W
	Ripple and noise	200mVp-p MAX	200mVp-p MAX	200mVp-p MAX
	Power adjustment rage	±1%
	Load regulation	±2%
	Boot delay time	=12S 12Vdc @ full load (Can be custom-ed by request)
	Output climb time	0.1～100mS/12Vdc @ full load
	Output holding time	≥10mS/12Vdc @ 80% of full load
Protective Properties	Out put over-current protection	Rated output power 120%-200% protection. Mode : burp mode, automatic recovery after removal of abnormal load conditions
	Output short circuit protection	Protected mode :burp mode, automatically restored after short circuit condition is removed
	Output over-voltage protection	Output voltage greater than 6.5V output burp protection
	Input back connect protection	The input anode and cathode are connected to the reverse power supply
	Over temperature protection	The power supply exceeds the rated power and the overtemperature protection starts
Output Signal	Output instruction	Led Power indication

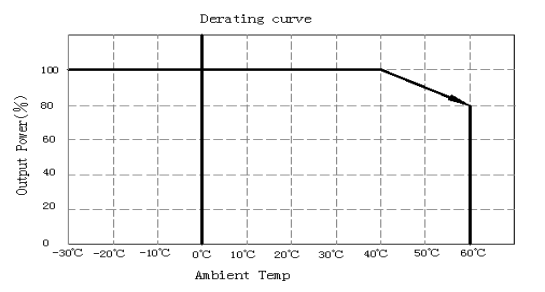

Working Conditions:

Work Parameter
Cooling node	Natural cooling
Working humidity requirement	20～90% non-condensing
Request of store temperature and humidity	-30～85℃,10～95%RH
Vibration specification	10～500Hz,5G 10min./cycle,60min.each along X,Y,Z axis

Dimension:

unit:mm

Packing:

Packing way	Bubble bag + Cartons(40 Units/Each box)
Net weight	0.25Kg/Each*40；Each box net10Kg
Rough weigh	10.5Kg
Boundary dimension	315285165mm

Cautions:

The following is the bottom view, the fixing screw is M3, the part of the power supply should be less than 3.5mm, otherwise the power supply may be damaged or cause danger.
The power supply shall be installed directly in the metal box of the system for good heat dissipation. Under poor heat dissipation conditions, it is recommended to use a load of less than 80%.
