    Sysolution receiving card D60-16, 16HUB75 ports support P1.538, P1.5,P1.667 modules

    Sysolution Receiving card D60-16

    Product Introduction

    The D60-16 is a standard receiver card launched by Shenzhen Sysolution Company. Featuring 16 standard HUB75E interfaces, supporting up to 32 groups of RGB parallel data and carrying up to 768X256 pixels, it has powerful processing capability, ultra-stable performance and super high cost performance.


    Product Image



    Loading Capacity


    Three lines parallelism

    (RGB)

    Data interface/numberDrive

    Maximum loading

    (Pixels)

    Brightness correction loading (pixels)Chromaticity correction loading (pixels)
    32 groupsHUB75E/16Normal768*256512*256256*320
    PWM768*256768*256256*320
    Number of cascade cardsSupport scan line
    ≤1000PCS1-64 scan

    Function Definition


    FunctionDescription
    Improved display effect
    • Support point-by-point brightness and chroma correction: with the correction software, the brightness and chroma of each lamp point of the large screen can be corrected to effectively eliminate color difference so that the brightness and chroma of the display can reach a high degree of consistency and improve the picture quality of the display.
    • Support a variety of display effect solutions: with LedSet4.0 software to achieve refresh priority and grayscale priority effect.
    • Support 90° multiples of screen rotation: with LedSet4.0 software, it can rotate 90° multiples of the receiving card screen.
    • Support screen scaling function: with LedSet4.0 software, the pixels carried on the receiver card can be scaled in multiples to achieve the enlargement and reduction of the display screen.
    Upgraded operability
    • Support receiving card serial number detection: with the network port debugging function in LedSet4.0 software, the receiving card number and network port information will be displayed on the target box, and users can be informed of the receiving card location serial number and connection line.
    • Support data interface customization: with LedSet4.0 software, the output data of the receiver card can be detected and editable.
    • Support the construction of complex boxes: In the advanced layout of LedSet4.0 software, you can quickly make any arrangement and construction of box modules.
    • Support the construction of complex large screen: In the complex display connection of LedSet4.0 software, the box can be quickly arranged and constructed arbitrarily.
    Hardware Stability
    • Network Circuit backup: The network port is connected by the main and backup network circuit to increase the reliability of the receiving card serial connection. When one of the main and backup serial lines fails, the other one can ensure the normal display of the screen.
    Software Intelligence
    • Support reading back the configuration parameters of the receiving card: you can read back the current receiving card configuration parameters on LedSet4.0.
    • Support network cable BER(Bit Error Rate) detection: on LedSet4.0, the communication signal quality of the network cable connected to the system hardware can be monitored in real time, so as to quickly determine the network cable and troubleshoot.
    • Communication monitoring function: real-time monitoring of receiving card working status on LedSet4.0.

    Output Port Definition


    32 groups of parallel data interface definitions





    JP1-JP16 data interface definitions

    Pin13579111315
    DefinitionR0B0R1B1ACCLKOE
    Pin246810121416
    DefinitionG0GNDG1EBDLATGND

    J12 definitions


    Pin12345
    DefinitionGNDKEY-KEY+LEDR-3V3LED+LEDG-

    Indicator Description


    IndicatorPositionStatusDescription

    Status Indicator

    (Green)

    U1Uniform slow flash

    .

    The receiver card works normally, the network cable is connected normally, and there is no DVI signal input.

    Uniform fast flashThe receiver card works normally, the network cable is connected normally, and there is DVI signal input.
    Black ScreenNo gigabit network signal
    Intermittent flash 3 timesThe receiver card is working normally, the network cable circuit is connected, and there is DVI signal input.

    Status Indicator

    (Red)

    U3Ever BrightPower supply is normal

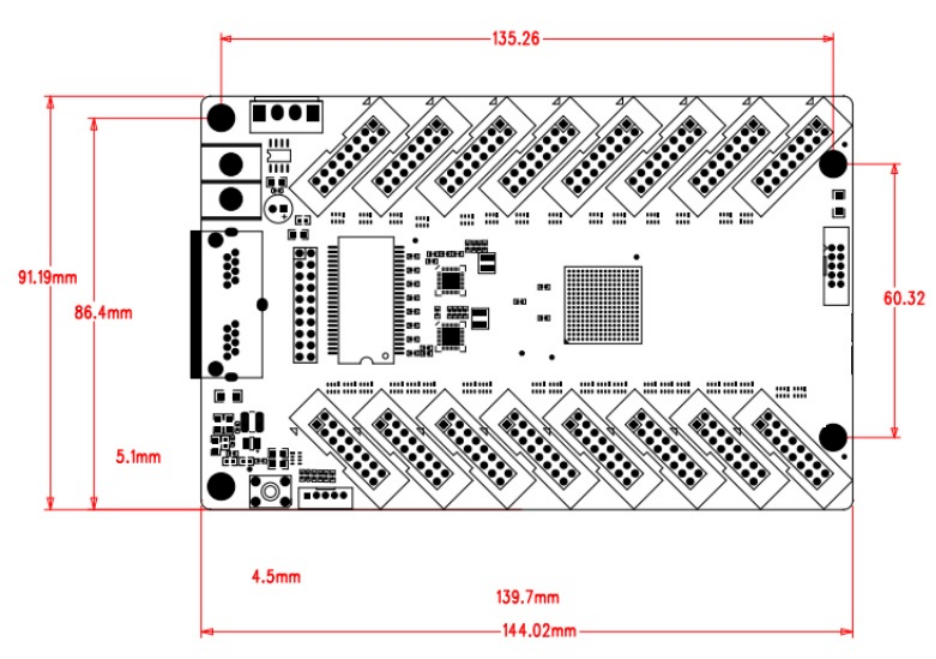

    Dimension

    Working Parameters

    Electric parameterInput VoltageDC3.5-5.5V
    Rated current0.6A
    Rated power3W
    Working EnvironmentWorking temperature-20℃ - 70℃
    Working humidity10%RH-90%RH
    Storage EnvironmentTemperature-25℃~125℃
    Board Card Size144.02mmX91.19mm
    Net Weight100.8g
    Certification InformationRoHS compliant, CE-EMC compliant
